About

A blog about SCAMP (Small Craft Advisor Magazine Project) boats. Covering the build, sailing the boat and the scamp community that has formed around this little portly boat.

Sunday, July 26, 2015

Bronze ring for centerboard cover removal

While in Port Townsend I stopped by the Chandlery and picked up a pull ring and a closed anchor chock.
The anchor chock will go on the bow.

The pull ring was an easy install, so I did that today.

Measured and knifed out before applying a chisel
The removal of material wasn't too bad. Forstner bits are great for hogging out material. I had to go deeper than I thought to get the entire pull ring in there.

Dry fit



Ugly shot of the removed material
I didn't get any pictures, but I coated that liberally with epoxy and filled the screw holes.
After it set up a bit, I installed the pull ring and the screws. It'll cure right in there.
Finished!

Red Lantern Rally II

Saturday was the 2nd annual Red Lantern Rally. We had 11 scamps in Mystery Bay, WA.

We had a bit of a sail just after lunch. It was beautiful with all these silly colorful little boats tacking around each other.

At 3:30 the official 2nd annual ice cream race happened. No cheating this year! John and Jackie were about to win in Cowboy Cookies, but John gracefully tacked out right at the very end. Sköl won the race.
Josh presented an award for the first place finisher, an award for the longest distance (Jackie from Oklahoma) and a special award to Dan for #70, who launched for the first time on the day of the rally. Dan's boat turned out just beautiful, he should be proud.


Looking over the nose of PT Puffin to Dan & Howard in #70


(ltor) Cowboy Cookies, Serenity, Snug, Dan's #70, #1

Snug and Phil's Little Tramp (blue). Dan (#70) further out.

moments later

(ltor) Serenity, Dan & Noddy
(note the little R2AK sticker on Noddy's port side in the above shot)

(ltor) Cowboy Cookies, Tor, Snug, #70

(ltor) Noddy, Skol, Scamp, Little Tramp, PTPuffin, kerfuffle from Oympia

(ltor) #70, Serenity
Last year there were a lot of blue scamps, this year seemed to be the year of yellow scamps with 2 in attendance, 3 if you count the boot stripe on PT Puffin.
In the above shot, you can see how Dan raised his cabin a few inches.

Mike even briefly sailed Tor with his own homemade spinnaker. Very nice. Wish I would have gotten a picture.

I was looking forward to this all week. I was hoping to top last year's 11 boats, but alas that didn't happen. We just matched it. There is always next year.
I did miss my new friends Brent and Shackleton.

A good time was had by all.

Thursday, July 23, 2015

Pictures from the Small Craft Academy and Palooza Crooza

Howard Rice and John Welford put on a small craft skills academy July 18 & 19. During the academy, I learned a lot about the scamp and how to sail her.


Brent's Shackleton
We deliberately capsized a GigHarbor Boatworks scamp and righted it and self-rescued. This made me feel a lot better about self-rescue operations. We also learned how hard it is to capsize a scamp. It doesn't just happen by accident.

capsizing and rescuing Jackie Monies' Cowboy Cookies
We also sailed out to Rat Island.
Brent and Preston in Shackleton

Sergei and Tyler in Serenity

On the beach at Rat Island (near to far: Cowboy Cookies, Serenity, Scallywag)

On the beach at Rat Island (near to far: Shackleton, PT Puffin, Tor)

There were many more activities and opportunities to learn during the academy. I understand my boat a lot better. Now I just need some time to hone my skills.



Sunday morning about 15 boats left Port Townsend for the Palooza Crooza and headed for Mats Mats Bay. The air was light, so Brent offered us a tow behind his 2.5hp motor.
Shackleton towing PT Puffin

Shackleton with a bit more wind
Noddy in dead air
Beautiful clouds over Mats Mats.
The Palooza Crooza was a huge success. Much thanks to Marty for organizing. Much thanks also to the chaperone Pete who made sure we all stayed safe and to the hospitable folks in Mats Mats bay who let some of the Croozas camp in their backyard.

I slept in the boat for 4 nights in a row for this journey. There was plenty of room for storage and I slept very well with the yoga mats and a sleeping pad.

I also built a list of tasks:
  1. mast mount a windvane
  2. install the cleat for the motor slide
  3. Decide and install either a tiller clutch or a hiking stick (or both)
  4. Use a clampmeter to find out how many amps the motor uses
  5. find a better way to charge my battery when on the water
  6. install real oarlocks and buy oars
  7. install a bailer
  8. install an anchor chock
  9. install some more tel tales
This weekend is the Red Lantern Rally in Mystery Bay. I'll spend some time up there. I hope we have a good turnout like last year.


Wednesday, July 22, 2015

Back to Port Townsend

Here are some pictures I took in August of the scamp before she was done.

new scamp

scamp
And here are some shots after she's done.
Finito!

Finished

On the star where we layed her down

Me and PT Puffin

And here is a video I made from shots of our build in August 2014.



Sunday, July 12, 2015

duck canvas cover

Building a rain cover is the last thing I need to do before I head to the Palooza Crooza.
I'd been messing with this one in my head for quite awhile, but hadn't made any final decisions until today.

I knew I needed good tension from to back. I toyed with the idea of putting rotating turnbuttons on the top of the cabin roof, but didn't like how that would look or how it could snag.

I came up with the idea to have a bungee in the hem of the cover that held it over the lip on the cabin top.
I attached small bronze cleats on either side of the cabin.

cabin side cleats


I also found some duck canvas on sale. That sealed the deal as to what fabric to use.

I hadn't used a sewing machine in quite some time, but I dragged ours out and started to sew it all up.
Sewing machine and burgundy canvas.


Full side shot of the attached canvas.

turn button stud under the gunwale.

you can see the loop in the front hem.
I added a loop handle on the front. You can see that in the above picture. I'll have some bungees to tie it to the mast to keep tension

I also used turn buttons on the aft transom to hold the canvas. I only have 2 on there at the moment. I will have to change that, but for now it's ok.
rear needs trimming

Yes, I know duck canvas is not waterproof. I plan to waterproof it with Thomson's water seal. I can always buy some nylon tent rain fly fabric and cut that into a fly as well. It'll likely be quite a bit more expensive, so I'll hold off until I need it.

There is definitely still work to do; the bottom hem needs elastic bands to keep it tight down around the gunwales; the back needs to be trimmed; and it needs some waterproofing. But it'll be ok for the Crooza.

Saturday, July 11, 2015

Rigging gear for sale at Palooza Jul 17-20

At the 2015 Palooza Crooza, I'll have some extra Davey & Co and Tufnol blocks for sale. This is all brand new gear still in the bags and undamaged.



If you are interested in buying any of these, please contact me directly. You can PM ElHeffe on the Scamp message board.

Tuesday, July 7, 2015

Temporary oarlock tent pole holders

I didn't want to mount the bronze oarlocks I bought from Duckworks permanently to the coamings until I knew exactly where I wanted them.

I used some leftover Trex to make blocks that fit around the coamings. They are probably too big, but they're temporary until I decide how I really want them mounted.
Trex blocks with a slot

Mount the oarlocks to the blocks

Finished blocks

Tent pole installed (it may be a bit too tall)

Shot of the tent pole
I need to figure out how to mount drape the tarp over the pole and mount it to the cabin top and to the stern.

I also need a way to stop the poles from slipping through the bottom of the oarlocks.

I'll also want to tether the blocks. I don't want to lose the oarlocks as I love how they look.

Saturday, July 4, 2015

Gunwale protectors

This is a step I had long been putting off. Long ago, I had cut myself 2x 14' 3/8" x 1 1/4" ipe runners from the edges of a 14' long hand rail that I had been saving for awhile.

It was going to be beautiful.

But the ipe cracked & split when I get screw #4 installed. Not surprising given how hard that stuff is. Unfortunately, it was irreparable.

After thinking about it, I decided that composite material like Trex was best for the job.
Home DesperateDepot had an acceptable 16' piece of Trex with grooves in the side.
I ripped 1 1/4" off the edges. Then I turned them 90degrees and ripped them at the groove down to about 3/8" thick. Just the right size.
Down the shear

I did realize that the brown on top of the Trex is not the sold color all the way through. It's black on the inside.
This means that the fore and aft edges show black. This is sacrificial and will probably be replaced in a few years, so I'm not too worried about it.

I ran into a second problem, no one makes 1" or 1 1/4" composite screws. The shortest they make is 1 5/8", and that would have been too long and gone right thought the gunwales. I finally found some trim head star drive coated screws at McLendon's. They aren't stainless,  but they are outdoor rated. They tend to mushroom out the Trex just a bit, but as the Trex swells, it might go away.

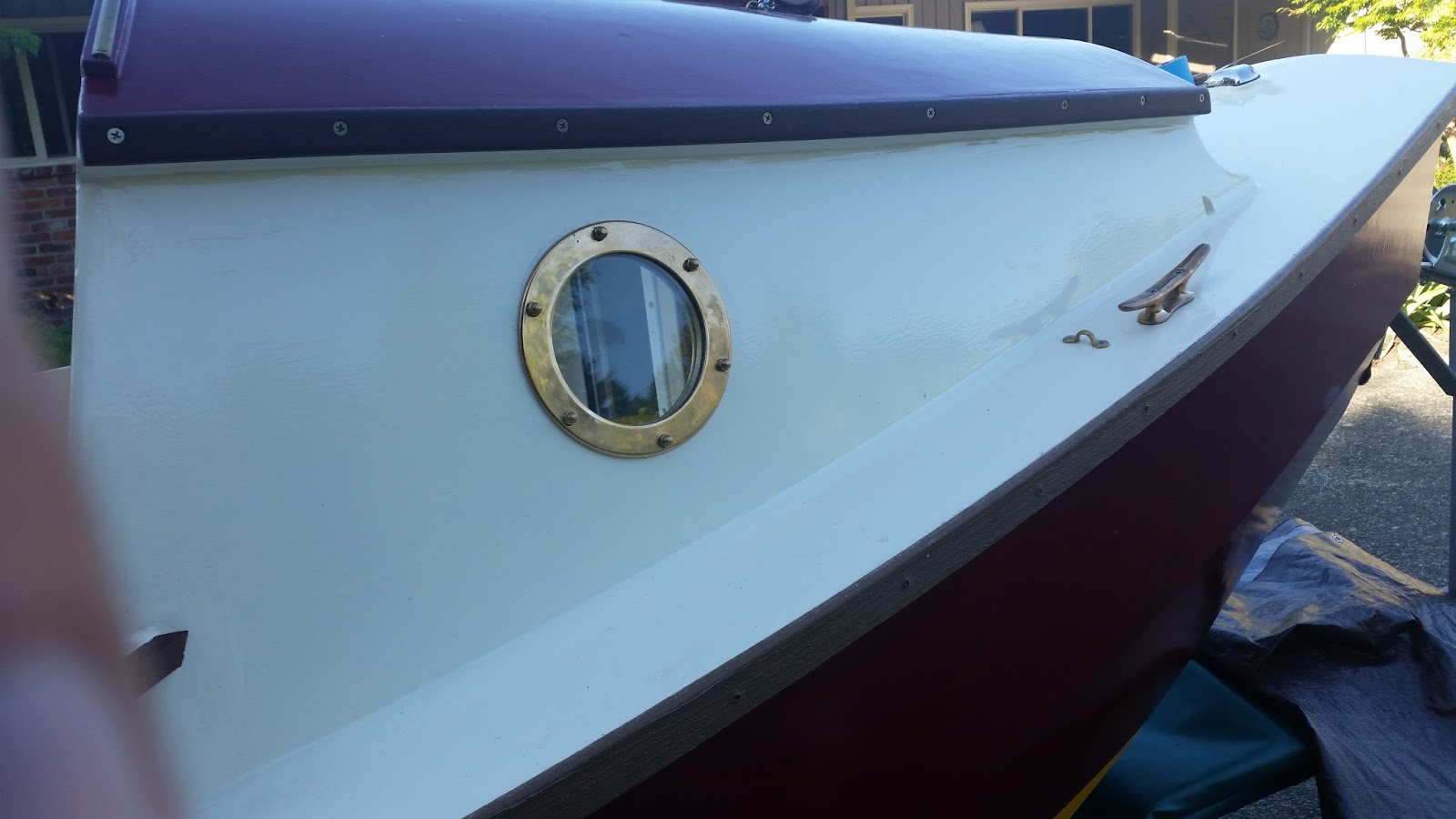

Shot of the gunwales

Here you can kind of compare it to the ipe on the cabin sides

A shot of the aft as I was cutting with a fine saw.


I first attached it with some bedding compound I got from West Marine. I didn't like that stuff at at all. Too hard to work and dried too quickly. Fortunately, I had some biscuit colored silicone caulk. I used that for the rest of the job and it matches the top deck color just beautiful.

(Working with Trex is weird. The rip cuts leave lots of little shavings and the dust is crazy fine. Be sure to wear a particulate filter when working it.)

I sure wish I could post some sailing posts. Unfortunately, the days have been 90 degrees with no wind at all. Maybe I'll still make it out soon.

Thursday, July 2, 2015

Lettering!

I ordered some vinyl lettering from DIYLettering. Lindsey helped me decide on fonts and placement.

It arrived today and I installed it with no problems.
Looks very nice, I think.

Vinyl lettering
I'm currently working on a tent, but trying to get as much sail time as I can (which isn't much, unfortunately). I already had a spare tent pole, I just needed some oarlocks and a way to attach the tent material to the hull. I ordered those from Duckworks.
And certainly I need some tent material, but I'm going to cut a pattern with a tarp.
